Gränssnittsdefinition
Åtkomstpunkt
Atomflöde produktion: http://download.lantmateriet.se/hydrografi/atom/v1.1/
Atomflöde verifiering: http://download-ver.lantmateriet.se/hydrografi/atom/v1.1/
Inspire
Information
Inspire Hydrography Dataspecifikation: http://inspire.jrc.ec.europa.eu/documents/Data_Specifications/INSPIRE_DataSpecification_HY_v3.1.pdf
Inspire tekniska riktlinjer: http://inspire.jrc.ec.europa.eu/documents/Network_Services/Technical_Guidance_Download_Services_v3.1.pdf
Schema
Inspire Hydrografi Fysiskt Vatten: http://inspire.ec.europa.eu/schemas/hy-p/4.0/HydroPhysicalWaters.xsd
Inspire Hydrografi Nätverk: http://inspire.ec.europa.eu/schemas/hy-n/4.0/HydroNetwork.xsd
Svensk Vattenstandard
Information
Svensk Vattenstandard: https://www.sis.se/produkter/informationsteknik-kontorsutrustning/allmant/ss6370082015/
Schema
Svensk Vattenstandard Fysiskt Vatten: http://resource.sgu.se/data/schemas/ss637008/ws_phwater/1.0/ws_physicalWater.xsd
Svensk Vattenstandard Nätverk: http://resource.sgu.se/data/schemas/ss637008/ws_network/1.0/ws_network.xsd
Atomflöde

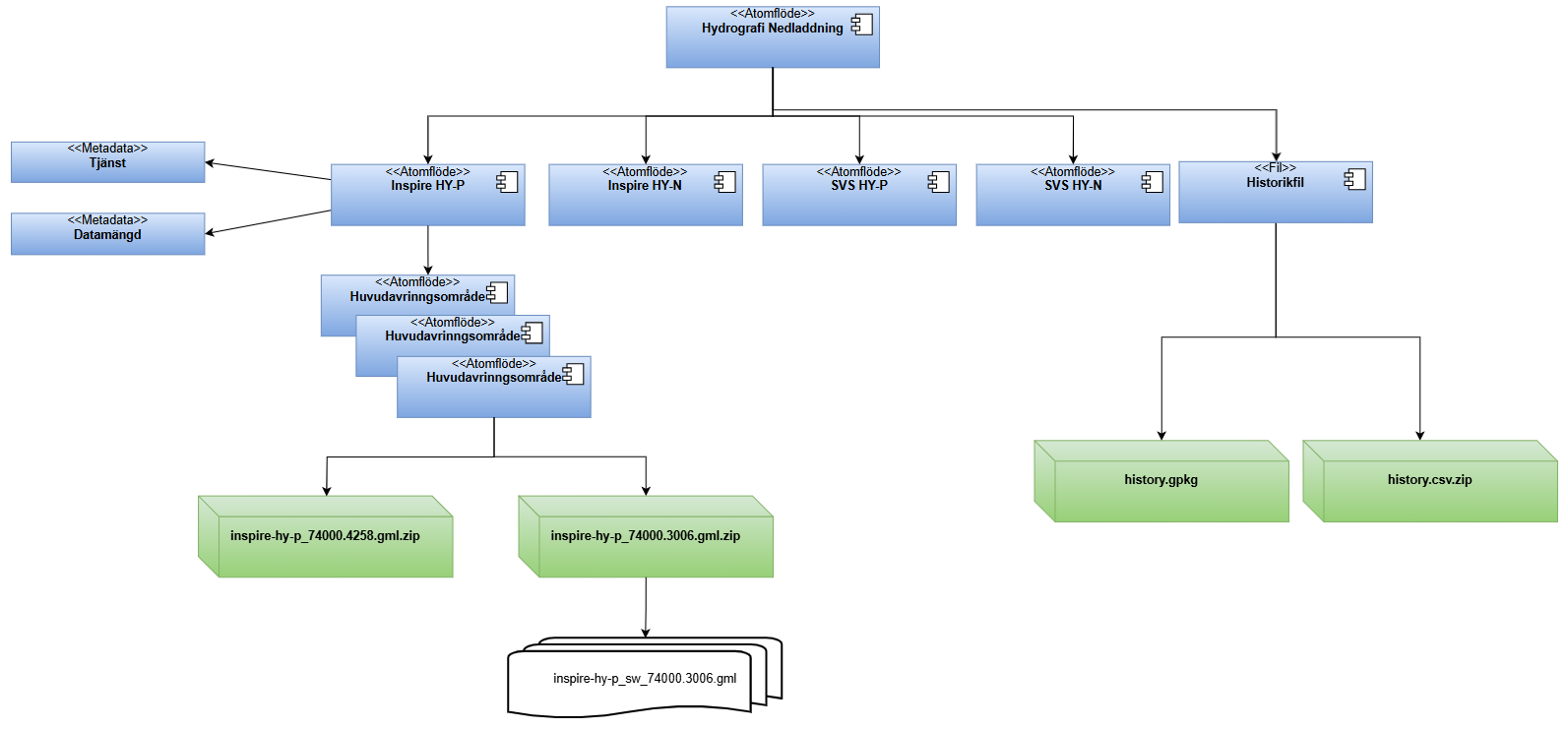

Logisk struktur
Exempel
Atomflöde för tema, Inspire Hydrography Physical Waters
Exempel
<feed xmlns:georss="http://www.georss.org/georss" xmlns="http://www.w3.org/2005/Atom" xmlns:inspire_dls="http://inspire.ec.europa.eu/schemas/inspire_dls/1.0" xml:lang="sv">
<id>http://download.lantmateriet.se/hydrografi/atom/v1.1/inspire/hyp</id>
<title>Inspire Hydrography Physical Waters</title>
<subtitle>Fördefinierade datamängder för Inspire Hydrography Physical Waters</subtitle>
<updated>2021-04-30T19:14:42+02:00</updated>
<link href="http://download.lantmateriet.se/hydrografi/atom/v1.1/inspire/hyp" rel="self" type="application/atom+xml" hreflang="sv" title="Detta dokument"/>
<link href="https://www.geodata.se/geodataportalen/srv/swe/csw-inspire?request=GetRecordById&service=CSW&version=2.0.2&elementSetName=full&outputSchema=csw:IsoRecord&id=353facbc-3f7d-4273-8ca6-b1a7f3265556" rel="describedby" type="application/vnd.iso.19139+xml" hreflang="sv" title="Metadata, nedladdningstjänst för Inspire Hydrography Physical Waters"/>
<link href="https://www.geodata.se/geodataportalen/GetMetaDataById?id=353facbc-3f7d-4273-8ca6-b1a7f3265556" rel="alternate" type="text/html" hreflang="sv" title="Metadata, nedladdningstjänst för Inspire Hydrography Physical Waters (HTML)"/>
<rights>Produkten omfattas av upphovsrätt. Avtal för användning krävs, avgifter för användning tas ut. Användningen förutsätter ändamålsprövning.</rights>
<author>
<name>Geodatasupport</name>
<email>geodatasupport@lm.se</email>
</author>
<entry>
<id>http://download.lantmateriet.se/hydrografi/atom/v1.1/inspire/hyp/74000</id>
<title>Inspire Hydrography Physical Waters, Emån (74000)</title>
<summary>Fördefinierad datamängd Inspire Hydrography Physical Waters, huvudavrinningsområde Emån (74000)</summary>
<updated>2021-04-30T15:11:21+02:00</updated>
<inspire_dls:spatial_dataset_identifier_code>74000</inspire_dls:spatial_dataset_identifier_code>
<inspire_dls:spatial_dataset_identifier_namespace>SE.LM.HY</inspire_dls:spatial_dataset_identifier_namespace>
<link href="http://download.lantmateriet.se/hydrografi/atom/v1.1/inspire/hyp/74000" rel="alternate" type="application/atom+xml" hreflang="sv" title="Inspire Hydrography Physical Waters, Emån (74000)"/>
<link href="https://www.geodata.se/geodataportalen/srv/swe/csw-inspire?request=GetRecordById&service=CSW&version=2.0.2&elementSetName=full&outputSchema=csw:IsoRecord&id=a2acb721-a900-42e7-9386-90f712836e64" rel="describedby" type="application/vnd.iso.19139+xml" hreflang="sv" title="Metadata för datamängden Inspire Hydrography Physical Waters"/>
<link href="https://www.geodata.se/geodataportalen/GetMetaDataById?id=a2acb721-a900-42e7-9386-90f712836e64" rel="alternate" type="text/html" hreflang="sv" title="Metadata för datamängden Inspire Hydrography Physical Waters (HTML)"/>
<category term="http://www.opengis.net/def/crs/EPSG/0/3006" label="SWEREF99 TM"/>
<category term="http://www.opengis.net/def/crs/EPSG/0/4258" label="ETRS89"/>
<georss:polygon>14.6187643884164 57.0919842683089 16.5049700972789 57.0919842683089 16.5049700972789 57.7967590865266 14.6187643884164 57.7967590865266 14.6187643884164 57.0919842683089</georss:polygon>
</entry>
...
</feed>Atomflöde för datamängd (Emån), Inspire Hydrography Physical Waters
Exempel
<feed xmlns:georss="http://www.georss.org/georss" xmlns="http://www.w3.org/2005/Atom" xmlns:inspire_dls="http://inspire.ec.europa.eu/schemas/inspire_dls/1.0" xml:lang="sv">
<id>http://download.lantmateriet.se/hydrografi/atom/v1.1/inspire/hyp/74000</id>
<title>Fördefinierad datamängd Inspire Hydrography Physical Waters, Emån (74000)</title>
<subtitle>Fördefinierad datamängd i olika referenssystem och format</subtitle>
<updated>2021-04-30T15:11:21+02:00</updated>
<link href="http://download.lantmateriet.se/hydrografi/atom/v1.1/inspire/hyp/74000" rel="self" type="application/atom+xml" hreflang="sv" title="Detta dokument"/>
<link href="http://download.lantmateriet.se/hydrografi/atom/v1.1/inspire/hyp" rel="up" type="application/atom+xml" hreflang="sv" title="Inspire Hydrography Physical Waters"/>
<link href="http://inspire.ec.europa.eu/featureconcept/Lock/" rel="describedby" type="text/html" title="Featurtype Lock"/>
<link href="http://inspire.ec.europa.eu/featureconcept/LandWaterBoundary/" rel="describedby" type="text/html" title="Featurtype Land-Water Boundary"/>
<link href="http://inspire.ec.europa.eu/featureconcept/Shore/" rel="describedby" type="text/html" title="Featurtype Shore"/>
<link href="http://inspire.ec.europa.eu/featureconcept/StandingWater/" rel="describedby" type="text/html" title="Featurtype Standing Water"/>
<link href="http://inspire.ec.europa.eu/featureconcept/DrainageBasin/" rel="describedby" type="text/html" title="Featurtype Drainage Basin"/>
<link href="http://inspire.ec.europa.eu/featureconcept/Rapids/" rel="describedby" type="text/html" title="Featurtype Rapids"/>
<link href="http://inspire.ec.europa.eu/featureconcept/Ford/" rel="describedby" type="text/html" title="Featurtype Ford"/>
<link href="http://inspire.ec.europa.eu/featureconcept/ShorelineConstruction/" rel="describedby" type="text/html" title="Featurtype ShorelineConstruction"/>
<link href="http://inspire.ec.europa.eu/featureconcept/Wetland/" rel="describedby" type="text/html" title="Featurtype Wetland"/>
<link href="http://inspire.ec.europa.eu/featureconcept/Sluice/" rel="describedby" type="text/html" title="Featurtype Sluice"/>
<link href="http://inspire.ec.europa.eu/featureconcept/Falls/" rel="describedby" type="text/html" title="Featurtype Falls"/>
<link href="http://inspire.ec.europa.eu/featureconcept/Watercourse/" rel="describedby" type="text/html" title="Featurtype Watercourse"/>
<link href="http://inspire.ec.europa.eu/featureconcept/DamOrWeir/" rel="describedby" type="text/html" title="Featurtype Dam Or Weir"/>
<rights>Produkten omfattas av upphovsrätt. Avtal för användning krävs, avgifter för användning tas ut. Användningen förutsätter ändamålsprövning.</rights>
<author>
<name>Geodatasupport</name>
<email>geodatasupport@lm.se</email>
</author>
<entry>
<id>http://download.lantmateriet.se/hydrografi/atom/v1.1/inspire/hyp/74000/dataset?srs=3006&format=application/zip</id>
<title>Inspire Hydrography Physical Waters, Emån (74000) [EPSG:3006, GML]</title>
<updated>2021-04-30T15:09:43+02:00</updated>
<link href="http://download.lantmateriet.se/hydrografi/atom/v1.1/inspire/hyp/74000/dataset?srs=3006&format=application/zip" rel="alternate" type="application/zip" hreflang="sv" title="inspire-hyp_74000.3006.gml.zip" length="17078771"/>
<category term="http://www.opengis.net/def/crs/EPSG/0/3006" label="SWEREF99 TM"/>
</entry>
<entry>
<id>http://download.lantmateriet.se/hydrografi/atom/v1.1/inspire/hyp/74000/dataset?srs=4258&format=application/zip</id>
<title>Inspire Hydrography Physical Waters, Emån (74000) [EPSG:4258, GML]</title>
<updated>2021-04-30T15:11:21+02:00</updated>
<link href="http://download.lantmateriet.se/hydrografi/atom/v1.1/inspire/hyp/74000/dataset?srs=4258&format=application/zip" rel="alternate" type="application/zip" hreflang="sv" title="inspire-hyp_74000.4258.gml.zip" length="27712067"/>
<category term="http://www.opengis.net/def/crs/EPSG/0/4258" label="ETRS89"/>
</entry>
</feed>Datamängd GML (Emån), Inspire Hydrography Physical Waters (StandingWater)
Exempel
<?xml version="1.0" encoding="UTF-8"?>
<wfs:FeatureCollection xmlns:hy-p="http://inspire.ec.europa.eu/schemas/hy-p/4.0" xmlns:hy="http://inspire.ec.europa.eu/schemas/hy/4.0" xmlns:gn="http://inspire.ec.europa.eu/schemas/gn/4.0" xmlns:base="http://inspire.ec.europa.eu/schemas/base/3.3" xmlns:xlink="http://www.w3.org/1999/xlink" xmlns:gmd="http://www.isotc211.org/2005/gmd" xmlns:fes="http://www.opengis.net/fes/2.0" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:ows="http://www.opengis.net/ows/1.1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:wfs="http://www.opengis.net/wfs/2.0" xsi:schemaLocation="http://www.opengis.net/wfs/2.0 http://schemas.opengis.net/wfs/2.0/wfs.xsd http://www.opengis.net/gml/3.2 http://schemas.opengis.net/gml/3.2.1/gml.xsd" timeStamp="2021-04-30T14:58:57.268963381+02:00" numberMatched="2804" numberReturned="2804">
<wfs:boundedBy>
<gml:Envelope srsName="http://www.opengis.net/def/crs/EPSG/0/3006">
<gml:lowerCorner>6328986.630 478218.128</gml:lowerCorner>
<gml:upperCorner>6403623.386 589908.053</gml:upperCorner>
</gml:Envelope>
</wfs:boundedBy>
<wfs:member>
<hy-p:StandingWater gml:id="SE.LM.HY.8a91909a-40cf-4bfd-bbe7-078710f90481">
<hy-p:geographicalName>
<gn:GeographicalName>
<gn:language>swe</gn:language>
<gn:nativeness xlink:href="http://inspire.ec.europa.eu/codelist/NativenessValue/endonym"/>
<gn:nameStatus xlink:href="http://inspire.ec.europa.eu/codelist/NameStatusValue/official"/>
<gn:sourceOfName>Swedish Place Name Registry - Ortnamnsregistret</gn:sourceOfName>
<gn:spelling>
<gn:SpellingOfName>
<gn:text>Vigotten</gn:text>
<gn:script>latn</gn:script>
</gn:SpellingOfName>
</gn:spelling>
</gn:GeographicalName>
</hy-p:geographicalName>
<hy-p:hydroId>
<hy:HydroIdentifier>
<hy:localId>8a91909a-40cf-4bfd-bbe7-078710f90481</hy:localId>
<hy:namespace>SE.LM.HY</hy:namespace>
</hy:HydroIdentifier>
</hy-p:hydroId>
<hy-p:beginLifespanVersion>2019-06-13T11:11:18+02:00</hy-p:beginLifespanVersion>
<hy-p:geometry>
<gml:Surface gml:id="SE.LM.HY.8a91909a-40cf-4bfd-bbe7-078710f90481_SW_GEOMETRY" srsName="http://www.opengis.net/def/crs/EPSG/0/3006" srsDimension="2">
<gml:patches>
<gml:PolygonPatch>
<gml:exterior>
<gml:LinearRing>
<gml:posList>...</gml:posList>
</gml:LinearRing>
</gml:exterior>
<gml:interior>
<gml:LinearRing>
<gml:posList>...</gml:posList>
</gml:LinearRing>
</gml:interior>
</gml:PolygonPatch>
</gml:patches>
</gml:Surface>
</hy-p:geometry>
<hy-p:inspireId>
<base:Identifier>
<base:localId>8a91909a-40cf-4bfd-bbe7-078710f90481</base:localId>
<base:namespace>SE.LM.HY</base:namespace>
</base:Identifier>
</hy-p:inspireId>
<hy-p:levelOfDetail owns="false">
<gmd:MD_Resolution>
<gmd:equivalentScale>
<gmd:MD_RepresentativeFraction>
<gmd:denominator>
<gco:Integer xmlns:gco="http://www.isotc211.org/2005/gco">10000</gco:Integer>
</gmd:denominator>
</gmd:MD_RepresentativeFraction>
</gmd:equivalentScale>
</gmd:MD_Resolution>
</hy-p:levelOfDetail>
<hy-p:localType>
<gmd:LocalisedCharacterString>sjö</gmd:LocalisedCharacterString>
</hy-p:localType>
<hy-p:origin>natural</hy-p:origin>
<hy-p:persistence xlink:href="http://inspire.ec.europa.eu/codelist/HydrologicalPersistenceValue/perennial"/>
<hy-p:tidal>false</hy-p:tidal>
<hy-p:drainsBasin xsi:nil="true" nilReason="other:unpopulated"/>
<hy-p:elevation uom="m">220</hy-p:elevation>
<hy-p:meanDepth uom="m" xsi:nil="true" nilReason="other:unpopulated"/>
<hy-p:surfaceArea uom="m2">1059661</hy-p:surfaceArea>
</hy-p:StandingWater>
</wfs:member>
...
</wfs:FeatureCollection>
